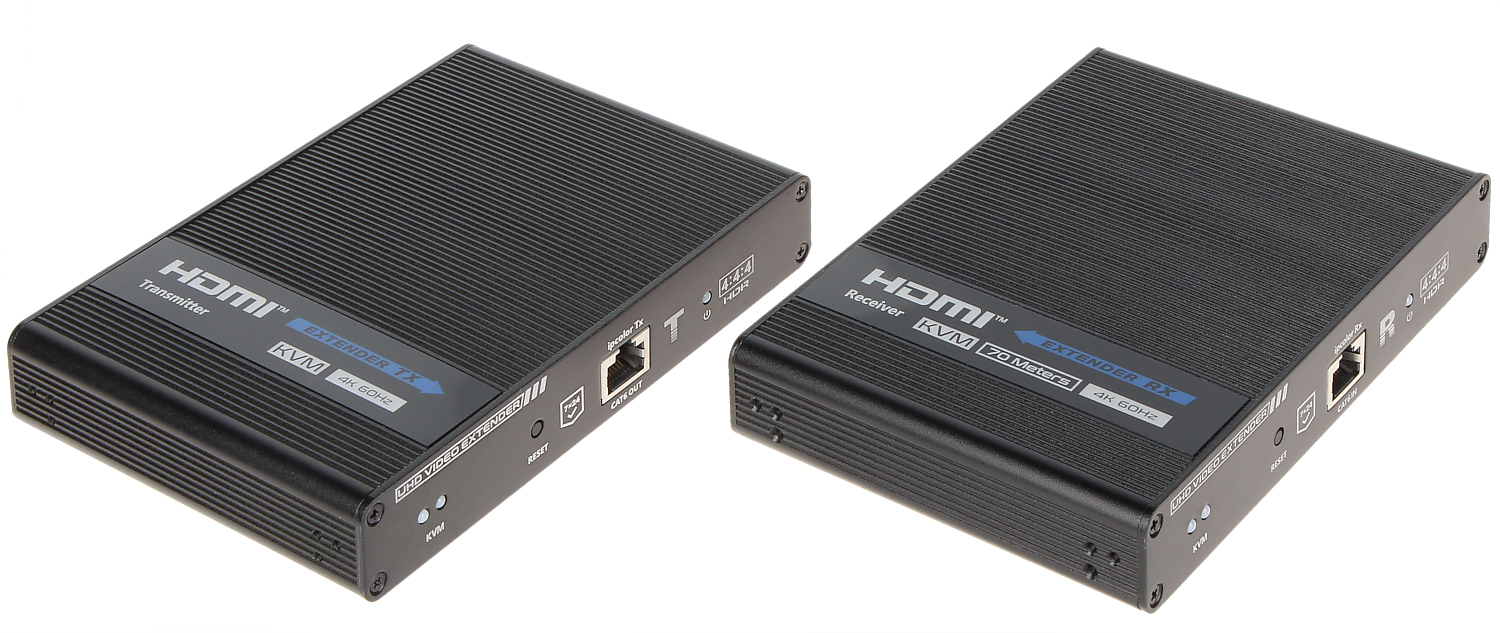

The HDMI extender by CAT-5e/6 uses 1 piece of CAT-5e/6 cables to extend the HDTV display up to 30 m for 1080p using a Cat6 cable the transmission distance can be up to 60 m for 480p while using CAT-5e/6 cable.
It is equipped with HDMI connectors and is capable of supporting DVI equipment when used with a HDMI to DVI Adapter, providing greater ? exibility and options when integrating several home theater components.
Features:• One pair as a full functional module, no need of setting.• CAT-5e/6 cable can substitute a HDMI cable to achieve long distance transmission.• Follow the standard of IEEE-568B.• Transmission distance can be up to 30 m for 1080p while using CAT-6 cable.• Compact size.• Signalling rates up to 1.65GBps in support of 1080p display.• HDCP compliant.
Speci?cations:Signal Inputs/OutputInput Video Signal 0.5 -1.0 V p-pInput DDC Signal 5 V p-p (TTL)Maximum Single Link Range 1920X1200, 1080pOutput Video HDMIVideo format supported DTV/HDTV 1080P/1080i/720P/576P/480P/576i/480iTransmission distanceUsing CAT6 Cable 30 m for1080pUsing CAT5e/6 Cable 50 m for 480pResolutions (HDTV)Interlaced(50&60Hz) 480i, 576i, 1080iProgressive(50&60Hz) 480p, 576p, 720p, 1080pEnvironmentalOperating Temperature -15 to +55°COperating Humidity 10% to 85 % RH (no condensation)Storage Temperature -10°C to +80°CStorage Humidity 5% to 95 % RH (no condensation)Power RequirementExternal Power Supply 5V DC@2ARegulatory ApprovalsConverter Unit FCC, CE, ULPower Supply UL, CE, FCCHDMI extender UTP 60m FullHD.
It not only breaks the limitation of the HDMI cable transmission length, but also CAT-5e/6 has more ? exibility and convenience in cable construction.
The HDMI extender by CAT-5e/6 uses 1 piece of CAT-5e/6 cables to extend the HDTV display up to 30 m for 1080p using a Cat6 cable the transmission distance can be up to 60 m for 480p while using CAT-5e/6 cable
