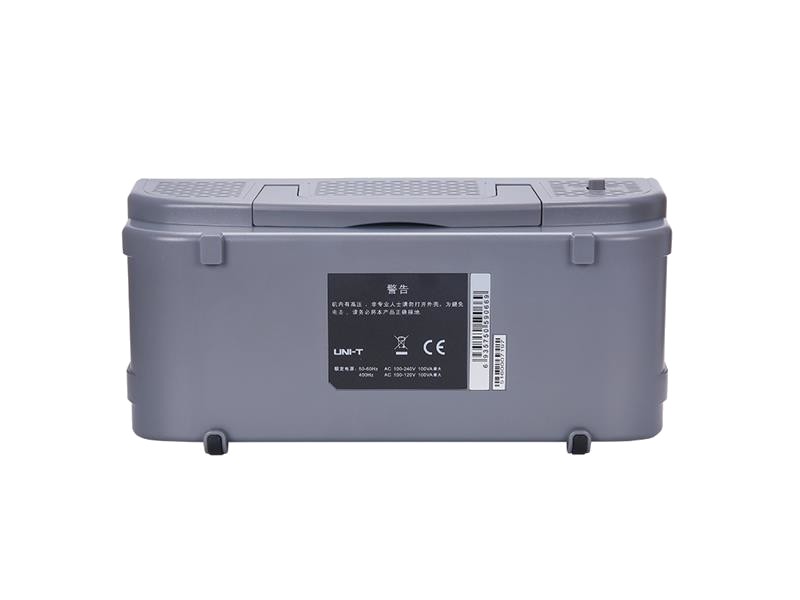

Osciloskop UNI-T UTD2052CL Oscilloscope UNI-T UTD2052CL The UTD2000L series desktop digital storage oscilloscope offers 2 channels and double sampling rate of 500 MS/s, compared to the lower version of UTD2025CL, which is sufficient enough for 50 MHz bandwidth.
TECHNICAL SPECIFICATIONS Channels 2 Bandwidth 50MHz Sample Rate 500MS/s Rise Time ≤7ns Memory Depth 25kpts Waveform Acquisition Rate ≥2000wfms/s Vertical Sensitivity 1mV/div~20V/div Timebase Range 5ns/div~50s/div Storage Setup,Wave,Bitmap Trigger Modes Edge, Pluse, Alternate Interface USB OTG GENERAL CHARACTERISTICS Power 230VAC / 50Hz Display 7 Inches 64K Color TFT LCD, 400×240 Product Color White and Gray Product Net Weight 2.2 kg Product Size(W×H×D) 306mm ×147mm × 122mm ACCESSORIES Probe×2 (1×,10× switchable),Power Cord, USB Cable, PC Software CD MANUFACTURER UNI-TREND http://www.uni-trend.com.
In addition, pressing the AUTO button simply sets the device.
A simple front panel with clearly labeled functions for basic operations, scale and location of individual channels allows you to use habits while using traditional tools, so you can use the device without having to learn anything, or work with it for a long time.
With USB OTG, you can store the measured values on a USB flash drive.
